Zhejiang Mingdi Extrusion Machinery Co.,Ltd
| Place of Origin: | ChunDi ZheJiang, China |
|---|---|
| Brand Name: | MINGDI EXTRUSION |
| Certification: | CE,ISO |
| Model Number: | 75/85 |
| Minimum Order Quantity: | one set |
| Price: | 20000-200000$ |
| Packaging Details: | PE film & wooden pallet packaging |
| Delivery Time: | 90days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets one year |
| Width: | 1200/1400mm | Thickness: | 0.15-1.2mm |
|---|---|---|---|
| Capacity: | 600/800kg/h | Material: | PP/PS/EVA |
| Application: | Furniture Veneer, Food Packaging, Fruit And Vegtable Packaging,electronic Product Packaging,hot And Cold Drink Cup Lids | Core Component: | Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System |
| Warranty Period: | One Year | Core Component Shelf Life: | One Year |
| Suitable Industry: | Food Packaging Industry, Toy Industry, Building Materials Industry, Advertising Industry, Etc | Core Selling Point: | Twin Screw, High Production Capacity And Low Energy Consumption |
| Highlight: | pp veneer production line,pp plastic sheet production line,ps veneer production line |
||
| Width | 1200/1400mm |
| Thickness | 0.15-1.2mm |
| Capacity | 600/800kg/h |
| Material | PP/PS/EVA |
| Warranty Period | One year |

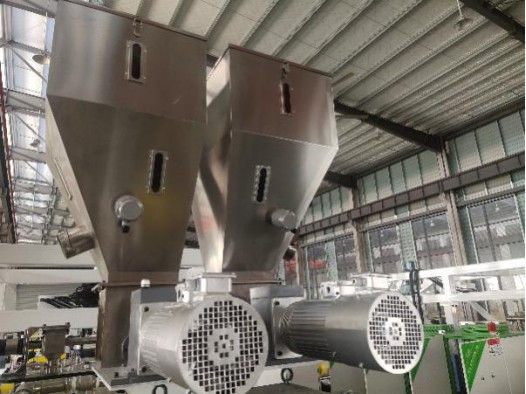

| Feeding form | Screw-type |
| Feeding capacity | 1000kg/h |
| Control mode | Variable frequency motor speed control |
| Converter | SIEMENS 3KW, using Ethernet control technology |
| Feed rate | 1-30kg/h |
| Material conveying method | Screw type |
| Drive motor | 0.4KW Siemens servo motor |
| Control method | Siemens servo speed control |
| Brand | Touya |
| Structure form | Full-network double-column screen changer with hydraulic station |
| Heating zone | Two zones |
| Heating power | Approx. 10kw |
Professional Customization: Designed specifically for furniture veneer needs, ensuring material performance meets strict industry requirements.
High Quality Materials: Suitable for PP, PS, EVA raw materials, producing sheets with excellent wear resistance, scratch resistance, high temperature resistance and environmental protection.
Precision Extrusion Technology: Efficient single screw extruder ensures uniform material melting, stable extrusion and consistent sheet thickness.
Advanced Control System: Equipped with Siemens PLC automatic control system for accurate process control and real-time monitoring, improving production efficiency.
