2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall

Basic Information
Place of Origin: Qingdao of China
Brand Name: Qingdao Leader machinery
Certification: CE;ISO9001-2000;Bureau Veritas
Model Number: LMSB120/35
Minimum Order Quantity: 1
Price: US$220000-250000/SET
Packaging Details: Wooden Cases and Wooden Pallet
Payment Terms: L/C, T/T, Western Union
Model NO.: Polycarbonate Sheet Extrusion Machine Condition: New
Application: PE Impermeable Membrane Sheet Thickness: 4-10mm
Origin: Qingdao, Shandong, China Customized: Customized
Dimension(L*W*H): 40M(L)*5.5M(W)*3.5M(H) Sheet Width: 2100mm
Trademark: Qingdao Leader Machinery Specification: CE ISO SGS GOST;BV
High Light:

PMMA Polycarbonate Sheet Extrusion Machine

,

2100mm Polycarbonate Sheet Extrusion Machine

,

2100mm PMMA Sheet Extrusion Machine

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall



Part 1 Introduction:

This polycarbonate hollow sheet extrusion line realizes continuous production of PC hollow grid sheet, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. It is characterized by light weight, high intensity,high transparency dampproof, and anticorrosion.



The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.



Part 2: Sheet Spcifications:

Sheet width: 700mm-1050mm- 1220mm-2100mm-2300mm,

Sheet thickness is 4mm-6mm-8mm-10mm-12mm.

Sheet walls: double walls

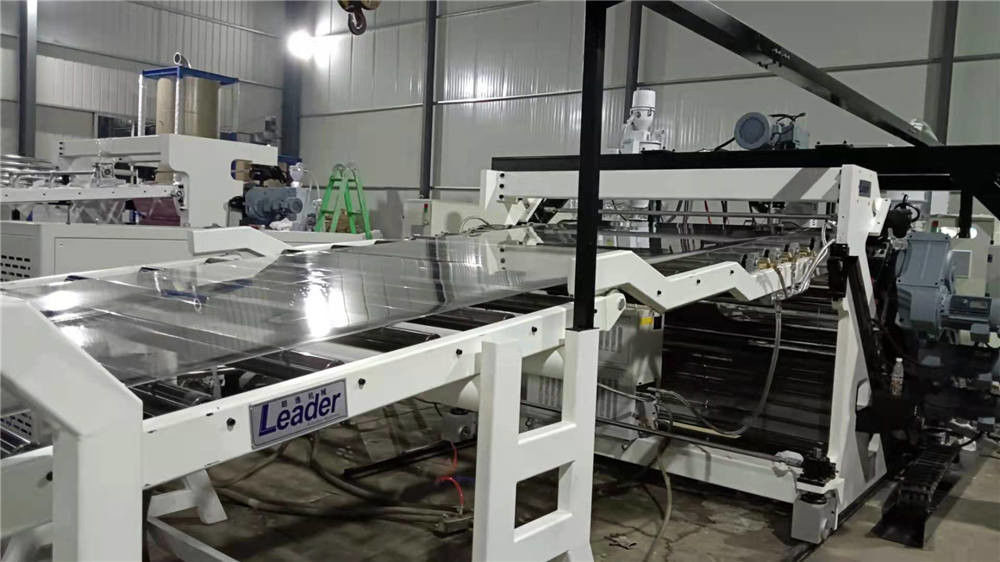

PART 3: This line consists of :

Item Description Data
1 SJ120/35 Single screw extruder with stainless steel hopper 1 set
2 Screen exchanging unit for PC 1 set
3 Melting gear pump for PC 1 set
4 SJ45/30 Single screw extruder for UV layer 1 set
5 Melting gear pump for uv 1 set
6 T-type Die head (2100mm*4-6mm) 1 set
7 Vacuum calibrating board 1 set
8 cooling table 1 set
9 The first haul off machine with 12 rollers 1 set
10 edge cutting device 1 set
11 5000mm oven 1 set
12 Corona treating unit 1 set
13 up and down sides, double position film laminating device 1 set
14 The second haul off machine 1 set
15 Tranverse cutting machine (length-settled) 1 set
16 material conveyor+6000mm discharge table 1 set
17 eletrical cabinet 1 set
  other accessory machine parts
18 500kg mixing and drying machine 1 set
19 AC-25 water chiller 1 set
20 15kw air compressor 1 set
21 sheet crusher 1 set



Part 4: Applications:

PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road



PART 5:COMPANY CERTIFICATIONS OF:

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall 0

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall 1

PART 4:COMPANY CERTIFICATIONS OF:

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall 2

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall 3

The 34th International Extrusion on Plastics and Rubber Industries

2100mm PMMA Polycarbonate Sheet Extrusion Machine Double Wall 4
