| Place of Origin: | Qingdao, China |
|---|---|
| Brand Name: | QingDao Leader |
| Certification: | CE, ISO9001-2000; BV |
| Model Number: | LSJ-100/35 |
| Minimum Order Quantity: | 1 SET |
| Price: | US $125,000-155,000/ Set |
| Packaging Details: | Wooden Cases with Vacuum Film |
| Delivery Time: | 2-3 months |
| Payment Terms: | L/C, T/T |
| Sheet Thickness: | 2-4mm | Sheet Width: | 1220mm |
|---|---|---|---|
| Machine Dimension: | 35m*7m*4.2m | Screw No.:: | Single-screw |
| Board Layers:: | Single Plate | Product Type:: | PP Board |
| Application: | Packing Or Roofing Or Construction Etc | Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens, Eurotherm Etc |
| Transport Package: | Wooden Pallet/Cases With Streching Films | HS Code: | 84772090 |
| High Light: | Formwork Construction Board Extrusion Line,PP Hollow Board Extrusion Line,1220mm Honeycomb sheet extrusion machine |
||

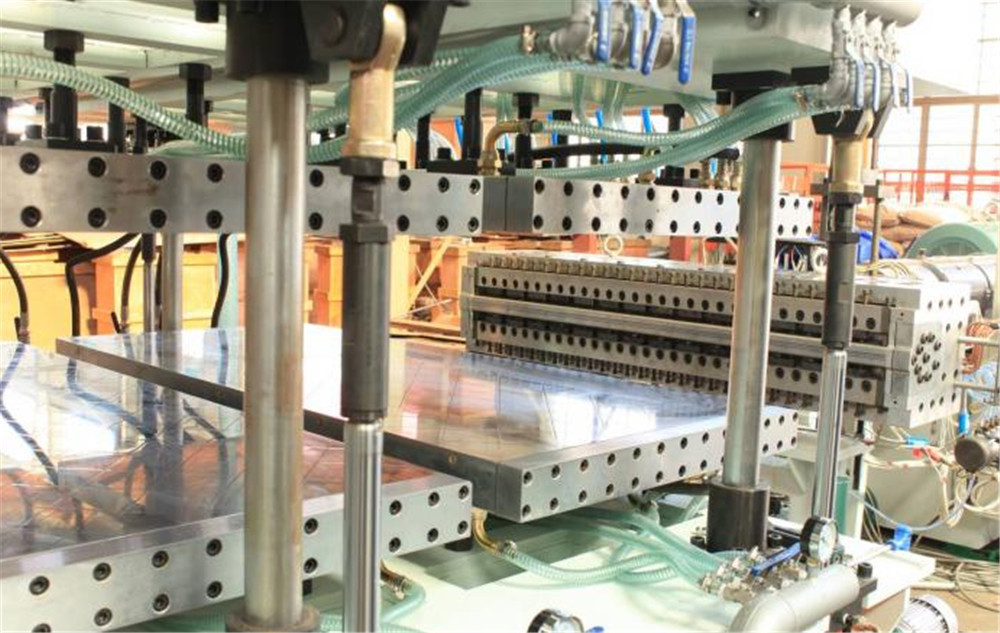

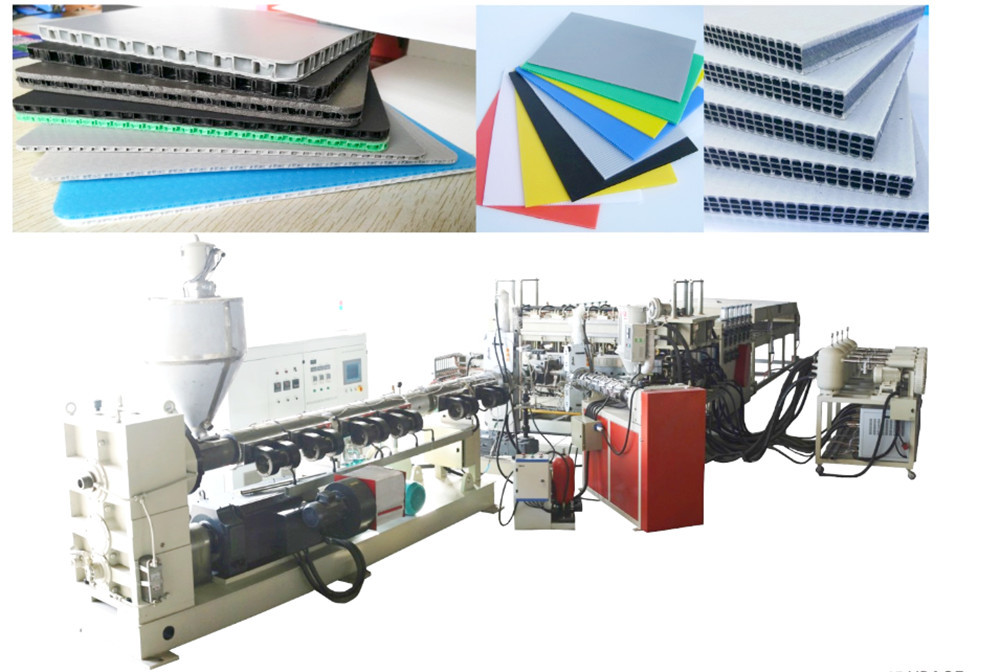

PP Hollow Sheets/Honeycomb Sheet / Formwork Construction Board Extrusion Line
PP Hollow Sheets, can be processed into turnover box, packing boxes etc. Instead of cartons for packing, and also can be used for printing and advertising.
PP honeycomb sheets machine adopts one step to extrude 3 layers sheets, middle layer is honeycomb type, surface layers are very thin. Widely used for car trunk cover board, luggage clapboard, sidewall decoration board, high strength of packing box etc.
As customer’ requirements, we can design and manufacture single layer and three layers PP formwork boards extrusion machine. The boards produced by our machine have the advantages of high strength, high impact, wear-resistance, long service life and can be recycled, more eco-friendly. Widely used in basement, high-way, rail-way and bridge etc. wet environment
Main technical specification
| Item | PP Hollow Cross Section Plate | PP Building Template Plat |
| Product thickness range | 2-8 mm | 4-40mm |
| Product width range | 2100/2400mm | 12-16mm |
| Max output | 350/500kg/h | 400/600kg/h |
COMPANY CERTIFICATIONS:
OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
