High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H

Basic Information
Place of Origin: QingDao, ShanDong, China
Brand Name: QingDao Leader
Certification: CE, ISO9001-2000; BV
Model Number: SJSZ 90/33
Minimum Order Quantity: 1 sets
Price: US$95000-295000/SET
Packaging Details: Wooden Pallet/Cases with Streching Films
Payment Terms: L/C, T/T, Western Union
Model NO.: LSJ-120/35 Sheet Width: 600-800mm-1000mm
Sheet Thickness: 0.2-2mm Sheet Structure: Single Layer, 2 Layers A/B, 3 Layers A/B/A
Max Capacity: 200-300kg/H-500kg/H Die Head: T-Type, Jc-Times Brand
Main Electrical Parts: ABB, Omron, Rkc, Schneider, Siemens Processing Material: PET, PP, PS
Transport Package: Wooden Cases With Vacuum Film Guaranteed Time: 12 Months
High Light:

PP PS Sheet Extrusion Line

,

500kg/H PP PS Sheet Extrusion Line

,

PLA Sheet Extrusion Machine

High Speed PP PS PET PLA Sheet Film Foil Extruder Extrusion Line Making Machine​

This Plastic PP/PS/PET PLA Sheet Production Line Maachineis specially designed for mono/multi Layer sheet for packing indrustry. The technology of "Single Screw extruding with low dew-point dehumidifying system " for high quality products in high transparency without buddle, which will be very important for thermoforming.


Raw Material:


1. can be virgin plastic material. PP, PS, PET, PLA
2. can be recyclable material, like PET Bottle Flakes, PP, PS granules

SHEET SPECIFICATION:


Usual Sheet Width: 600-800-1000mm
Usual Sheet Thickness: 0.2-2mm

APPLICATION:


1. This line is specially used for producing PET/PBT/PP/PE/HIPS/EVAOH sheet.
2. Surface Treatment: Adding some additives can improve intensity/toughness/rigidity, flame retardant, embossing, frosting, etc.
3. Application: Packing, printing, stationery, art works etc.
4. Main Products: Gift/ad/file bag/lamp cover/food packaging


FEATURES:


1. Screw with special mixing and plasticization function.
2. Coat hanger T-type die head with two throttle design enable to regulate the sheet thickness accurately.
3. Horizontal. vertical, 45 degree incline type 3 Roller Calendars may be lifted freely, sheet thickness shall be regualted by screw and pressing roller.
4. Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.
5. Exact slicing machine, excellent cross surface.
6. Winder with big torque motor, and it's speed and tension force adjustable.
7. Automatic metering to set the length of the products.

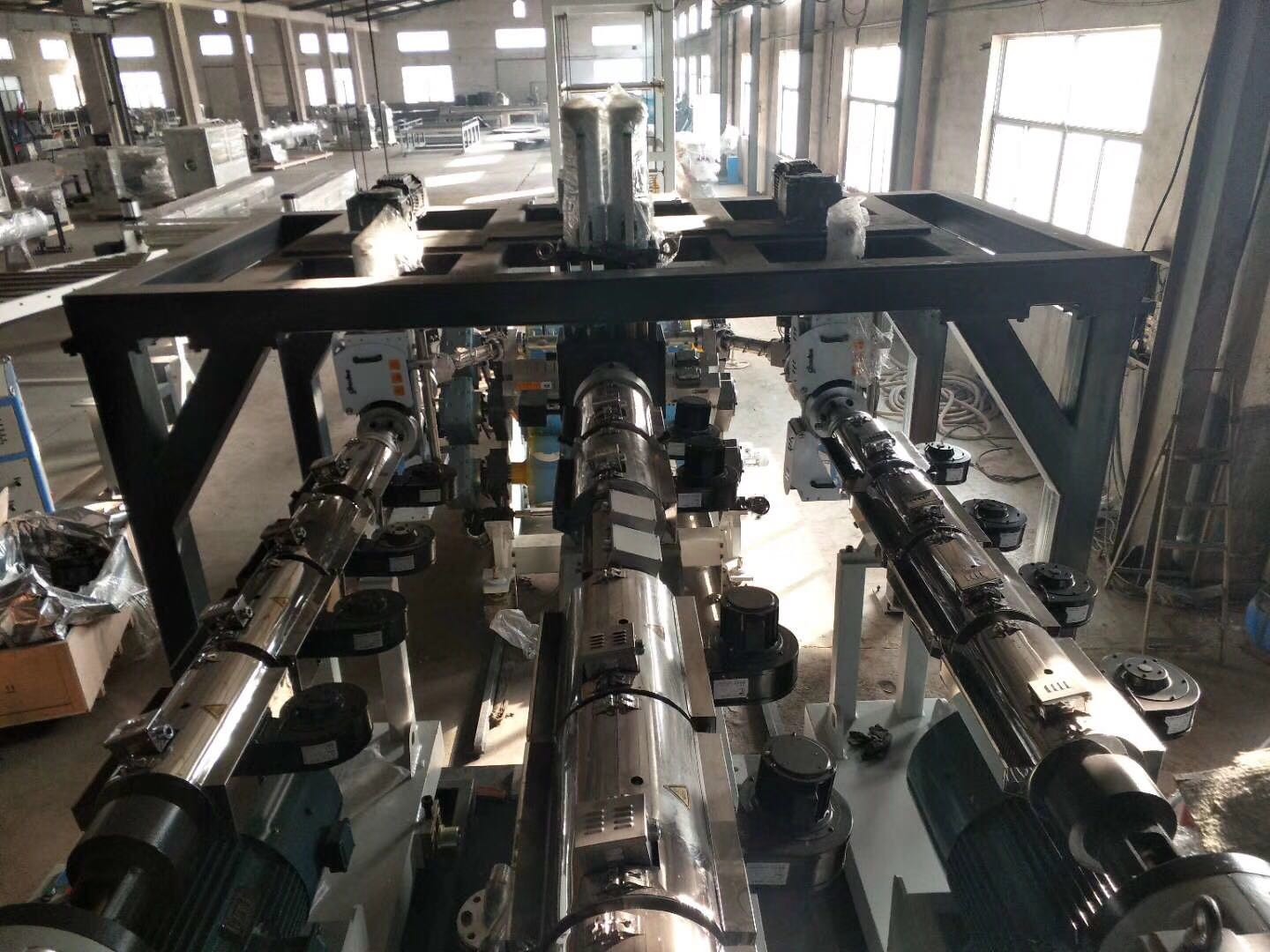

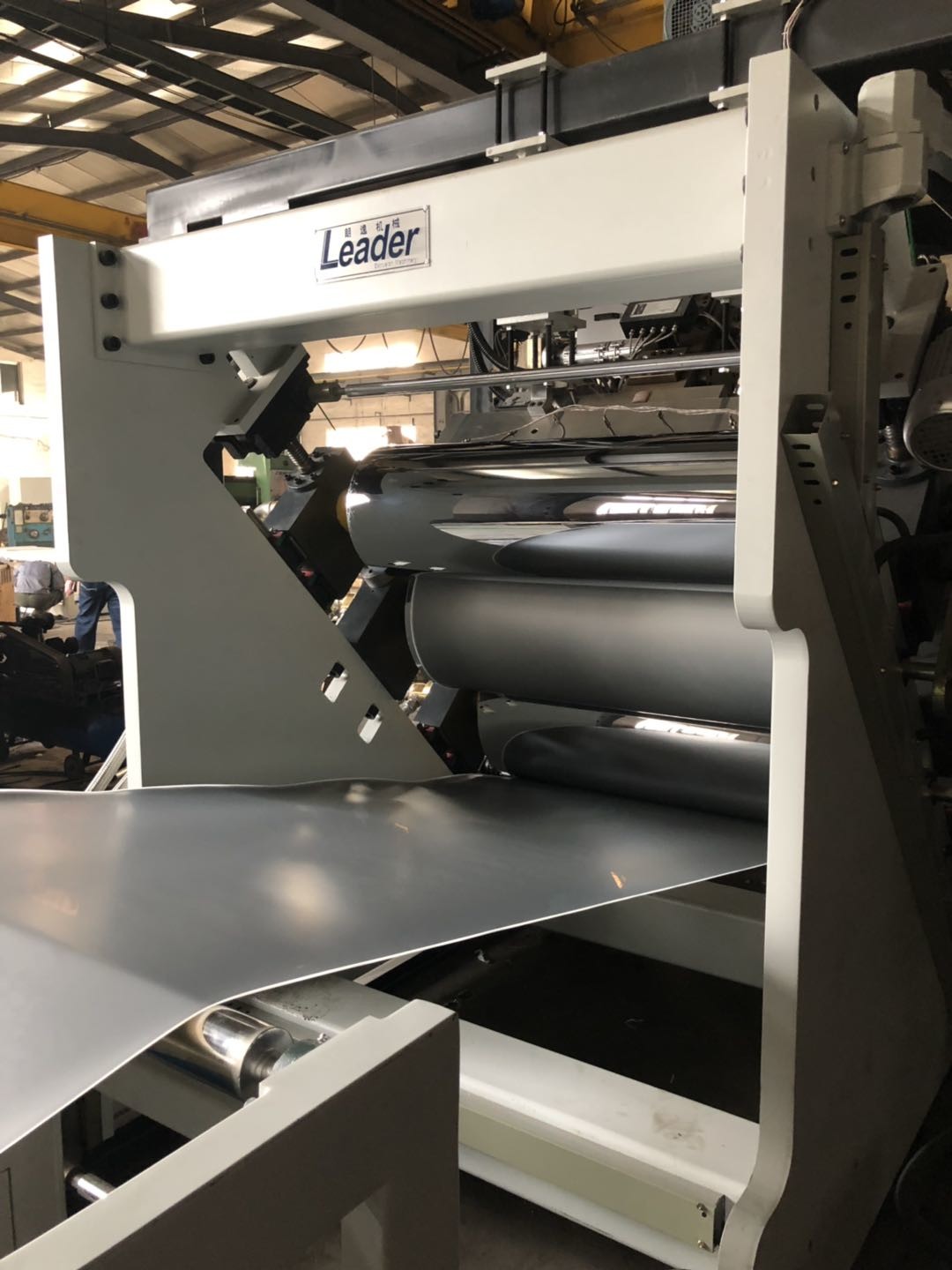

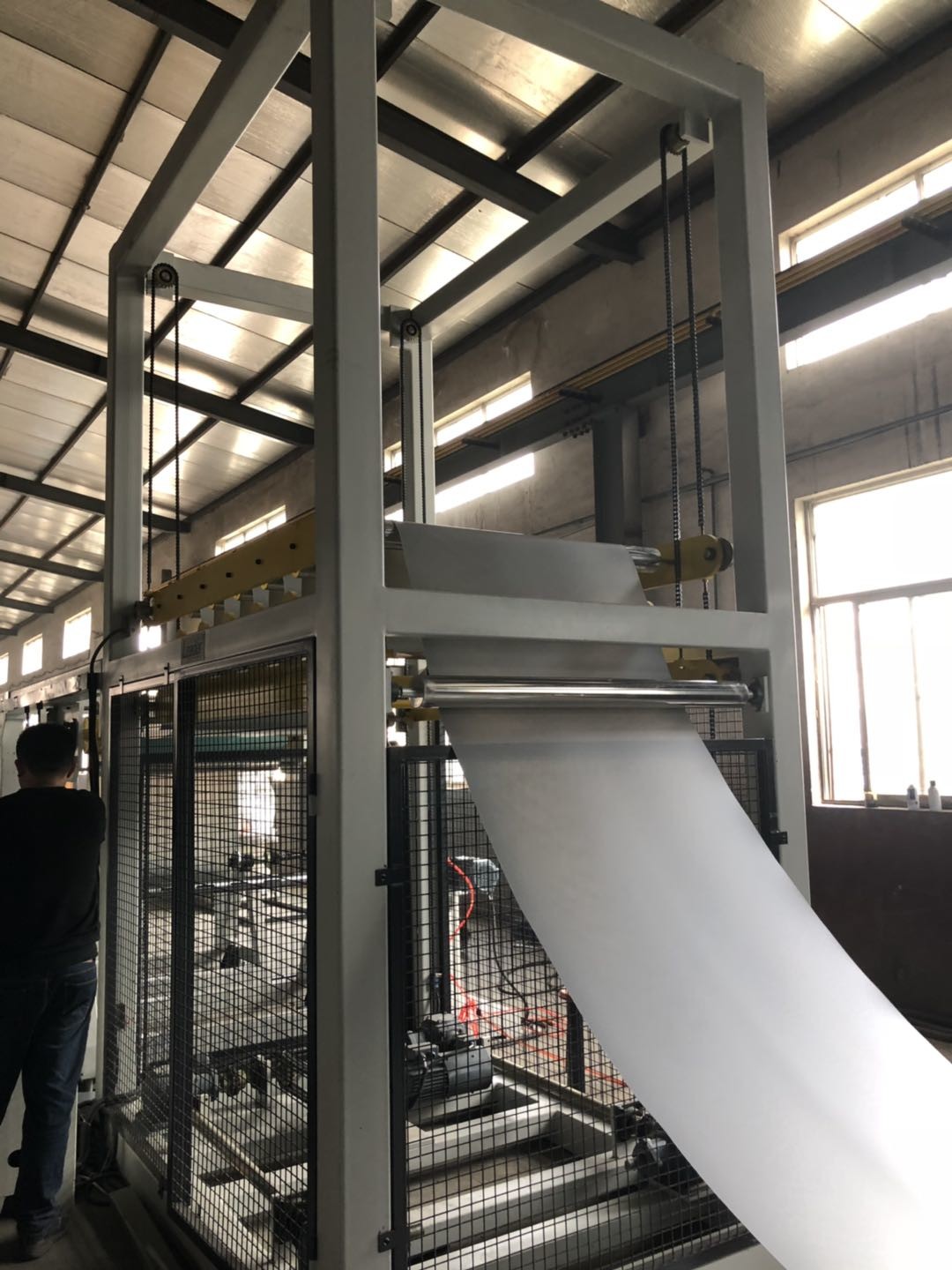

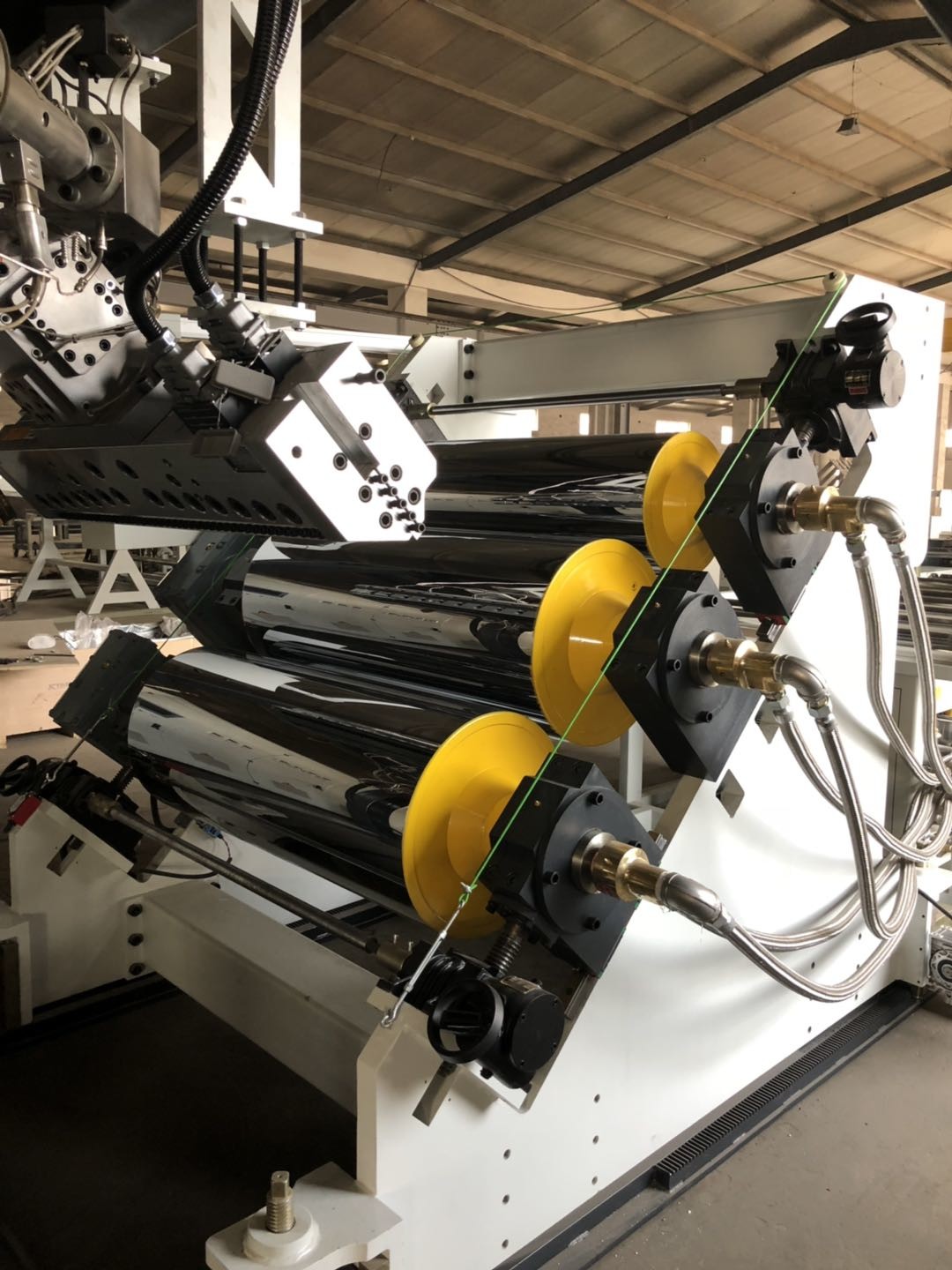

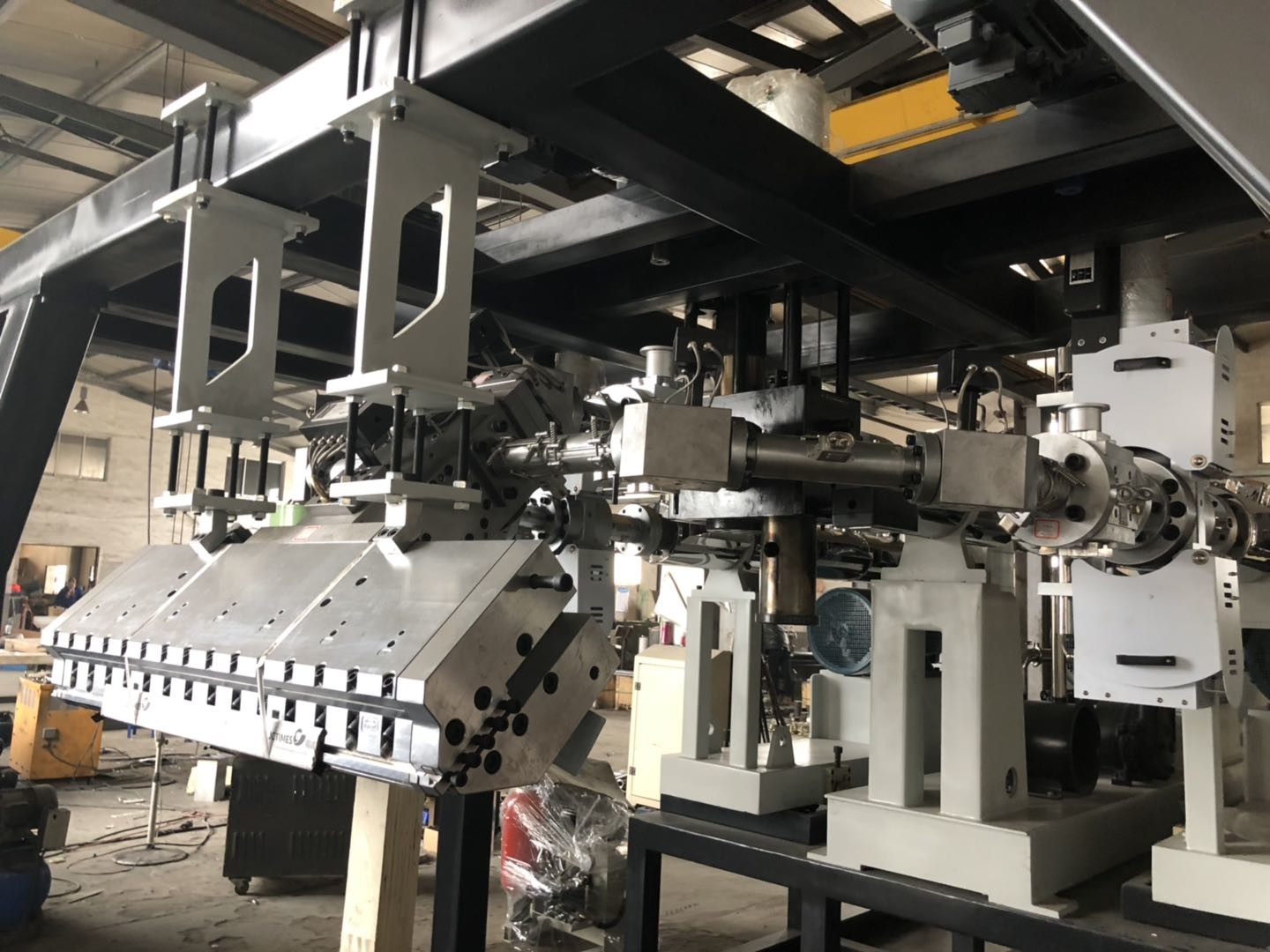

MORE MACHINE PICTURES:



High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 0

High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 1

High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 2

High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 3








High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 4





PACKAGING & SHIPPING:



High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 5



COMPANY CERTIFICATIONS:


High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 6
COMPANY TRADE SHOWS AROUND THE WORLD:
High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 7
High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 8
High Speed PET PLA PP PS Sheet Extrusion Line 500kg/H 9

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION

1. PC/PP hollow profile sheet/hollow grid sheet extrusion line


Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:


Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:


Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line:


Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:


Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:


Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:


Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:


Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:


Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line


Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine


Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
