TPU sheet extrusion line (width&thickness:1000mm&0.3-2mm)
This line adpots world famous assembled parts,combined with our company years'experience,more improved and stable performance.The TPU sheets produced by our machine has the advantage of smooth surface,corrosion resistance,fire-proof,water-proof,insulation etc,widely used for the automobiles manufactures at home and abroad.
MAIN MACHINE CONFIGURATIONS:
Item |
Description | Data |
| 1 | Material mixer | 1 set |
| 2 | Pressure kneader | 1 set |
| 3 | Automatic transmission hoist | 1 set |
| 4 | Forced double screw feeding machine | 1 set |
| 5 | 180mm (150mm) Gradient single screw extruder | 1 set |
| 6 | 2150mm T type die head | 1 set |
| 7 | Hydraulic exchanging unit | 1 set |
| 8 | Three rollers calendars with rollers thermoforming machine | 1 set |
| 9 | Double position double sides film laminating units | 1 set |
| 10 | Cooling frame | 1 set |
| 11 | Haul off machine and edge cutting units | 1 set |
| 12 | Sheets surface corona device | 1 set |
| 13 | Cutting machine (guillotine) | 1 set |
| 14 | Stacker | 1 set |
| 15 | Industrial water chiller | 1 set |
TECHNICAL FEATURES FOR MAIN PARTS:
1. Pressure kneader
This kneader mainly consists of mixing chamber, rotors, rotors sealed device, pneumatic pressure-increase units etc. The tpu pellets, fillers, agents, lube oil etc materials are put into this kneader. At the adjustable material and pressure hermetic condition, through the specially designed rotating rotors, the kneader begin mix those different kinds materials till theybecome aglomerator type. This kneader can also mix the edge cutting scraps and other waste material, no need to crush again and then put them into the sheet production
again.
2. Automatic transmission hoist
This conveyor can hoist the aglomerator type material from the pressure kneader into the forced feeding machine hopper. This conveyor and the hopper are made of stainless steel and adopts arch design, double type chains to hoist the material to realize stable and reliable work.
3. Forced double screw feeding machine
This feeding machine adopts conical double screws type to feed the material to the main extruder. The main motor is 11 kw with ABB brand frequency inveter for speed adjusting.
Other downstream machine parts:
4.1 T-type die head: Our machine adopts JC-times brand high quality die head. The mould material is 5CrNiMo and heated by stainless steel heating robs, total 11 heating zones.The temperature control can reach ±1ºC, highly precise.
4.2 Three roller calendars: alloy steel, hard chrome plating. Forward-backward, down and up and rollers gas adjusting, all adopts fully automatic motor.The rollers temperature controls adopts rollers thermo controlling machine by circulated conduction oil.
4.3 Haul off machine: adopts 2 NBR rollers, roller diameter is 220mm, width is 1200mm.with meter-counting device.
4.4 Cutting machine-guillotine: knife cutting, mechanical type. Motor power 5.5kw. Cutting speed 20 times/per min.Adopted high quality alloy cutting tools, sharp and durable.

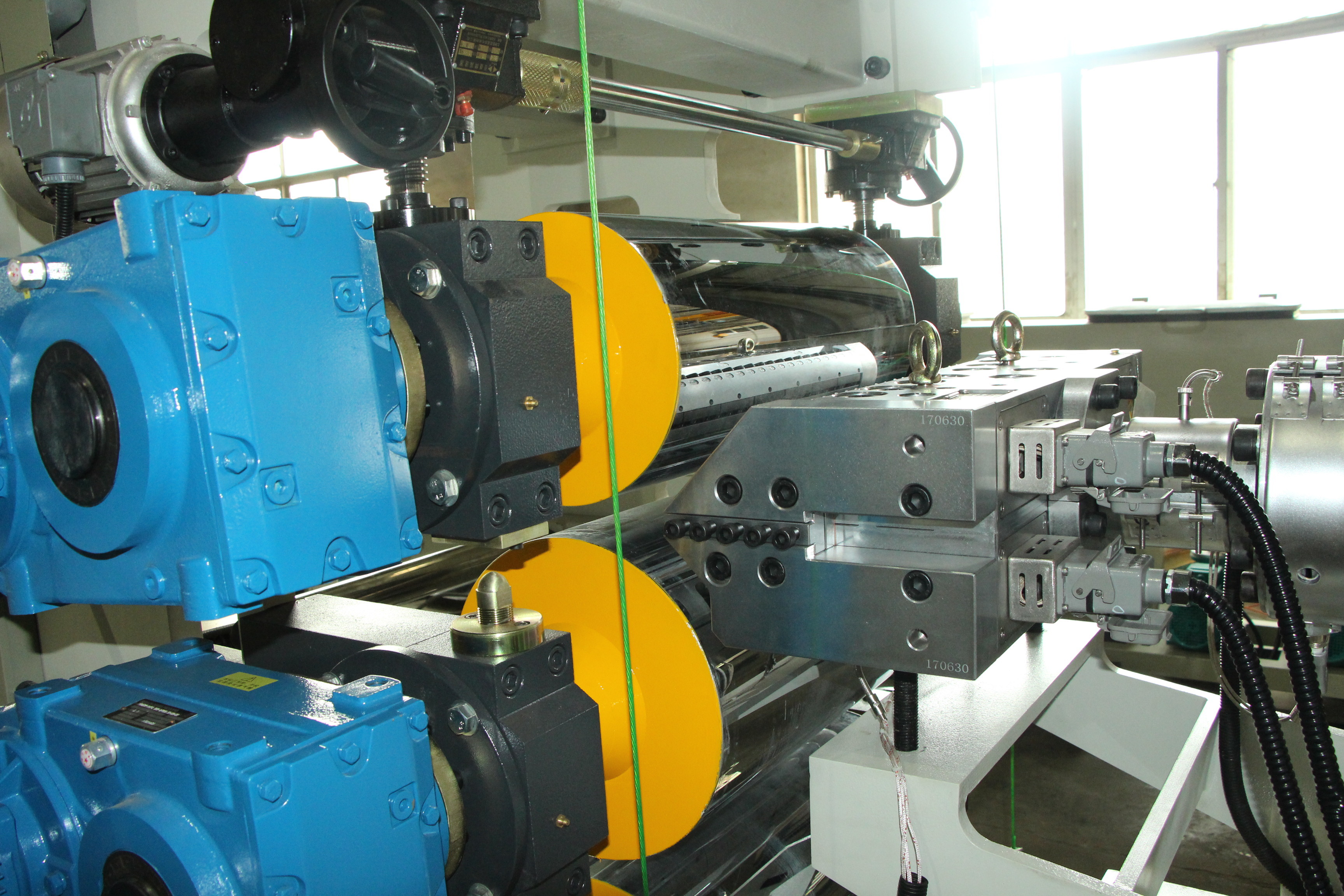

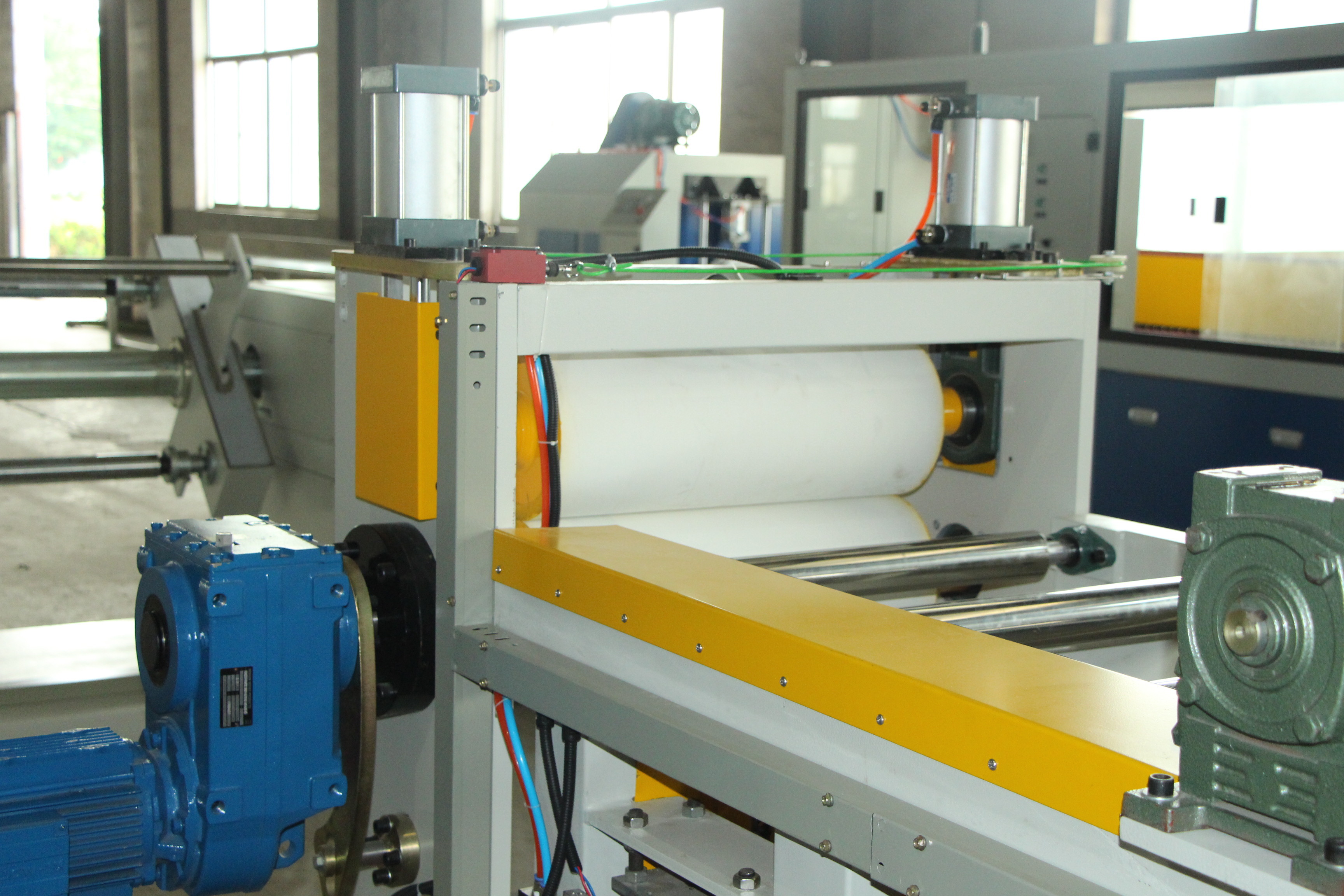

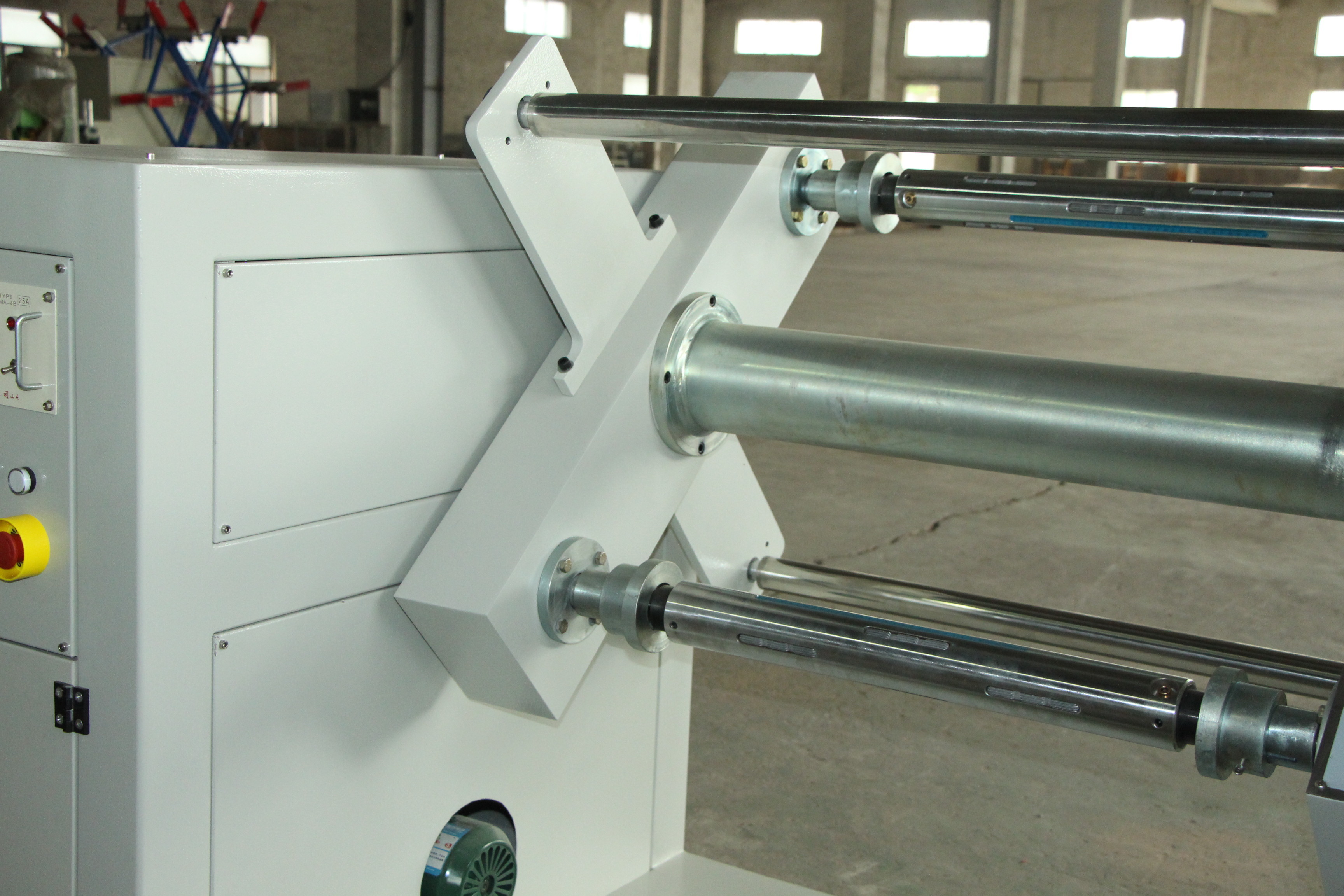

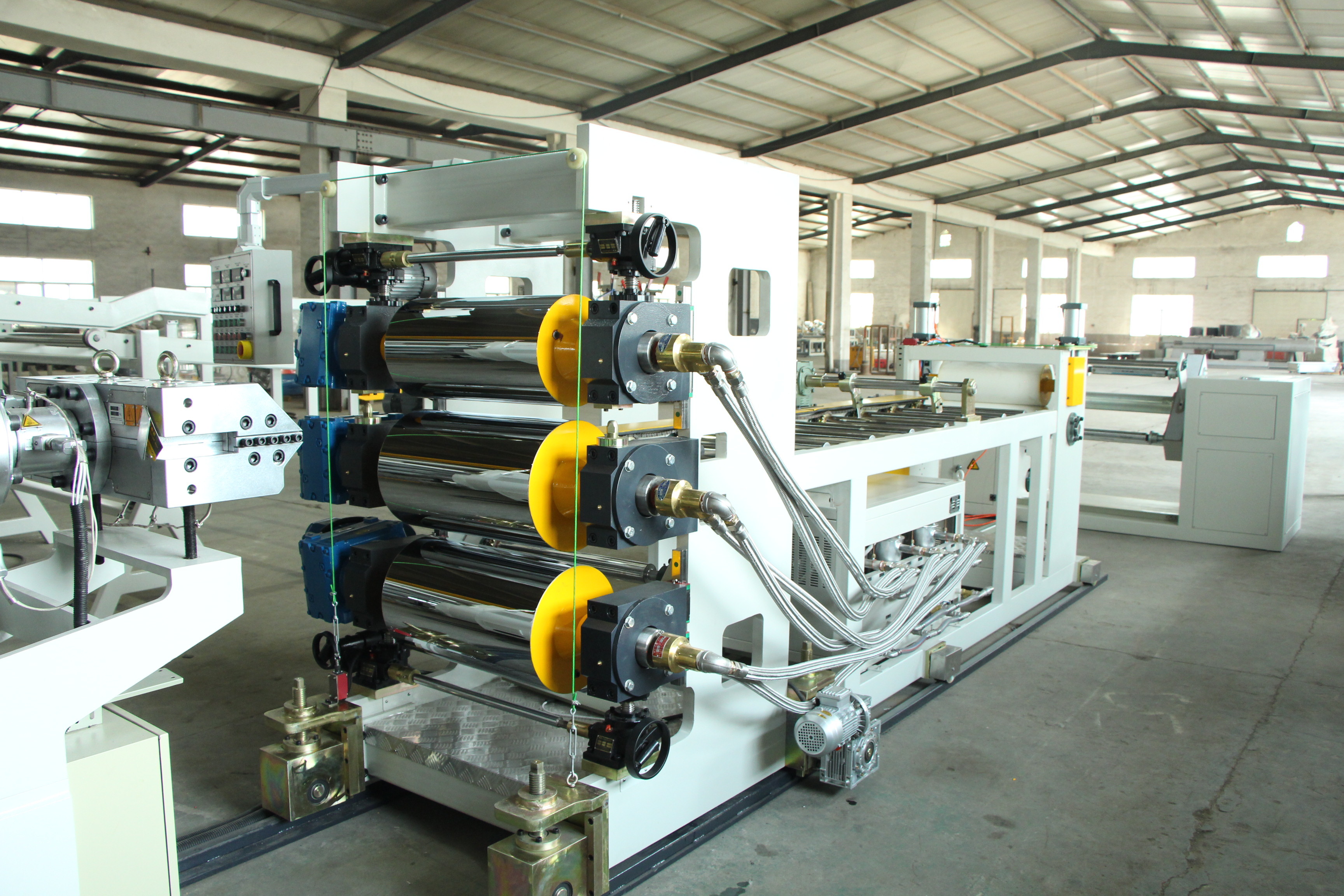

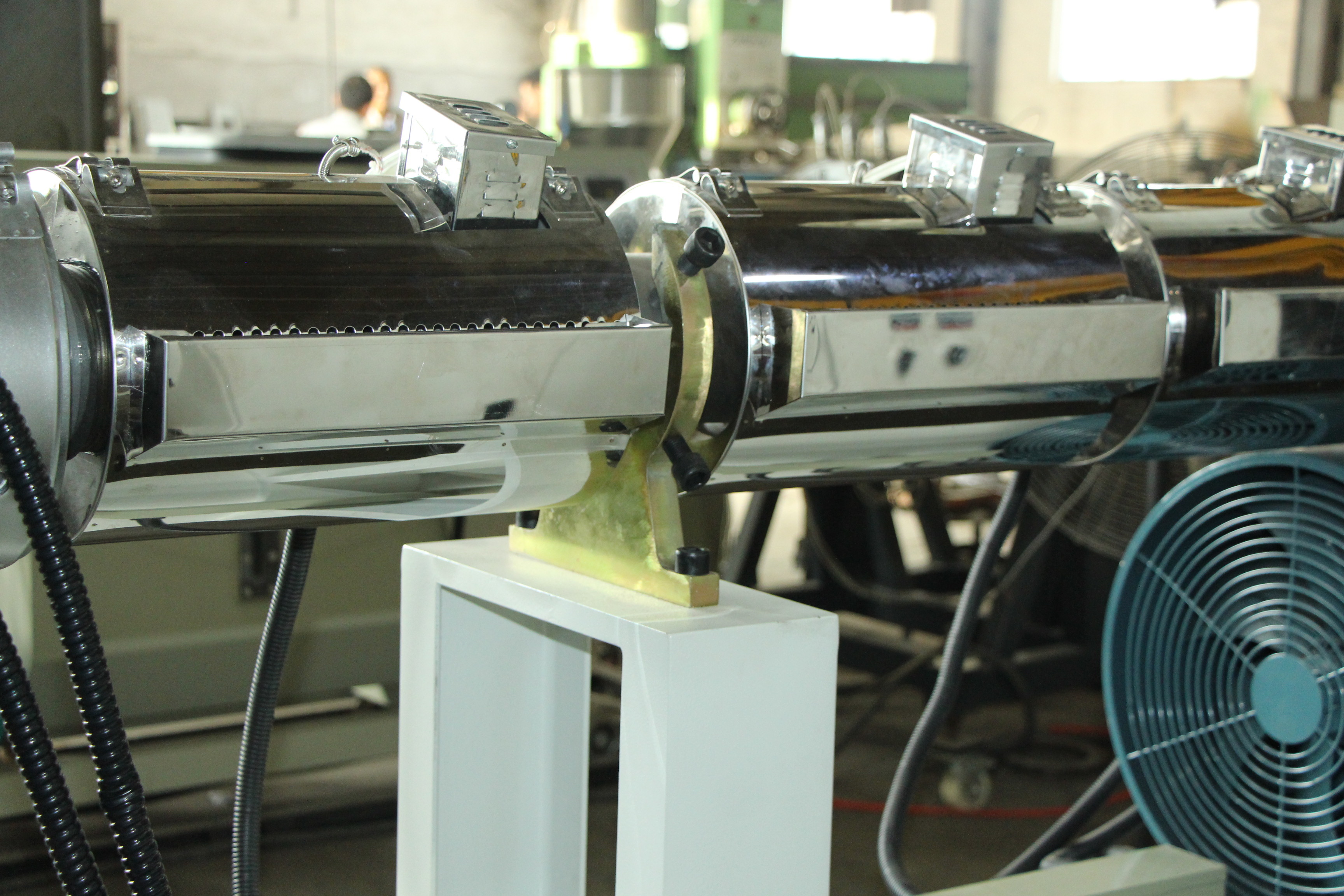

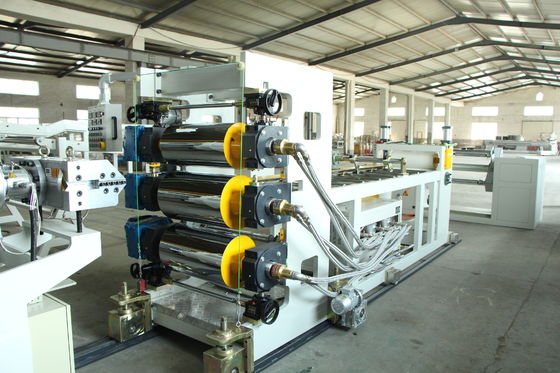

MACHINE PICTURES:
