600mm PC Polycarabonte Hollow Board U Shaped Panel Extrusion Making Machine

Basic Information
Place of Origin: CHINA QINGDAO
Brand Name: LEADER MACHINERY
Certification: CE, ISO, SGS
Model Number: LSJ-110/35
Minimum Order Quantity: 1 set
Price: 175000-465000 USD per set
Packaging Details: wooden pallets/cases with stretching films
Delivery Time: 80-100 days after prepayment
Payment Terms: L/C, T/T
Supply Ability: 20 sets per year
Sheet Width: 600, 900, 1040mm Sheet Thickness: 8-30mm
Sheet Application: Sidewalls, Window, Roofing, Skylight Extrusion Capacity: 200kg/h
Installed Power: 250kw Machine Installation Area: 30mx10mx4m
Extruder Model: SJ-110/35 Sheet Structure: W Type, R Type, Honeycomb Type, Diamond Type, Etc
Sheet Surface Treatment: With UV-protection Co-extrusion Guaranteed Time: 12 Months
Delivery Time: 80-100 Days
High Light:

600mm Hollow Board Sheets Extrusion

,

U Shaped Hollow Sheets Extrusion Machine

600mm Width Multiwalls PC Polycarabonte Hollow Board U-Shaped Panel U-Locking Sheets Extrusion Making Machine

Multiwalls PC Polycarabonte Hollow Board U-shaped Panel U-locking Sheets Production Line

PC hollow structure board extrusion machine, newly designed and developed by our company is specially used to produce PC hollow structure boards, also called PC-U shaped inline lock-gusset board, which is connected by the polycarbonate or aluminum fittings with its own fastening system but to drilling, which can prevent dust and drain off water effectively. U-shaped inline lock-gusset sheet is characterized by low cost and quickly installation, widely used in the roof and the cladding with graphic or bending design.





Board Specifications:

Board Width: 1040 (1050)mm, 600mm, 900mm

Board Thickness: 6-10mm, 8-12mm, 12-20mm, 22-30mm

Board Structure: 2-wall R structure, 4-wall R structure, 5-wall X-structure, 7-wall R structure

Board Weight: 1.8-2.2kg/m2, 2.0-2.4 kg/m2, 2.4-3.6kg/m2, 3.8-4.5kg/m2

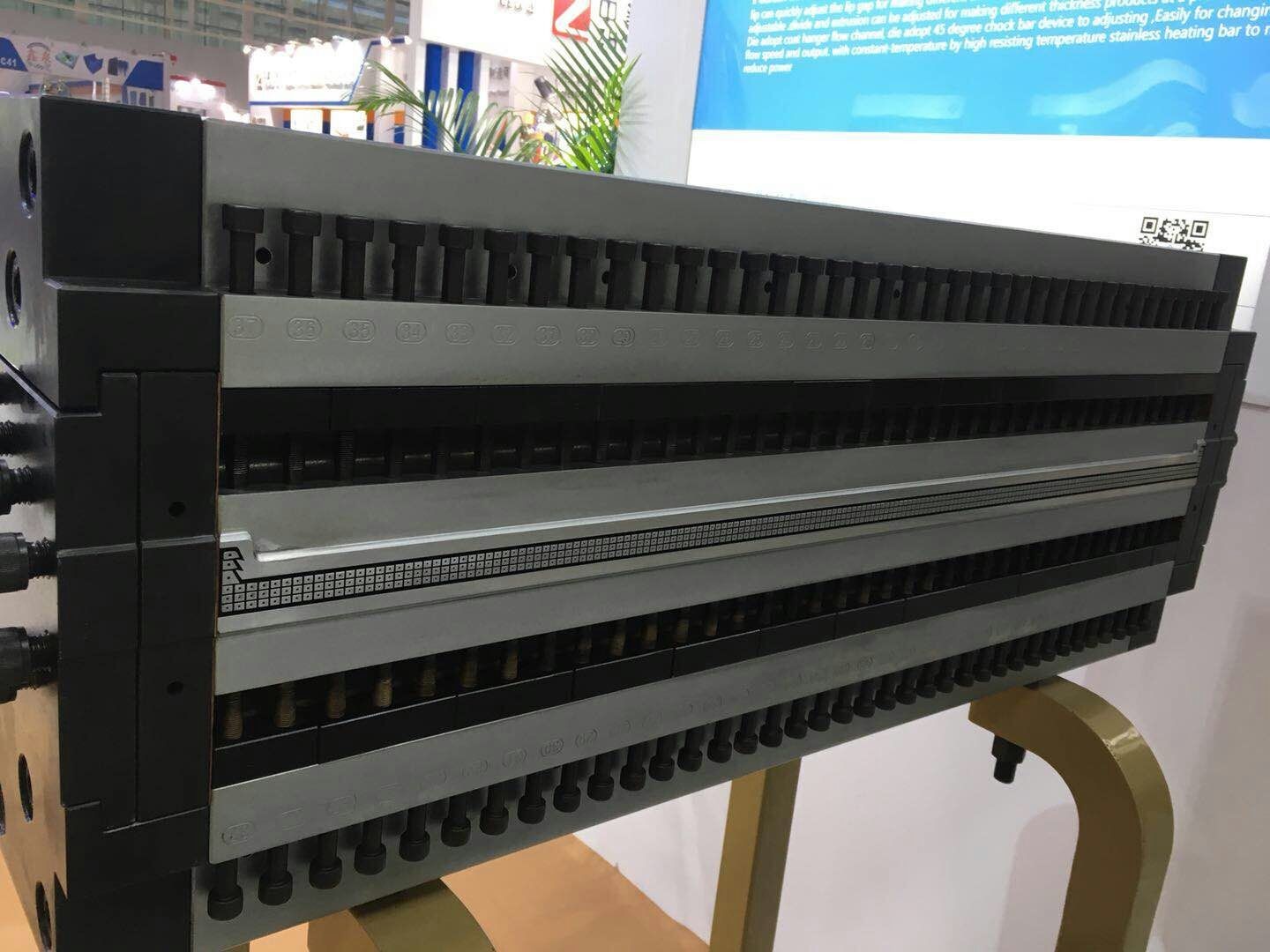

600mm PC Polycarabonte Hollow Board U Shaped Panel Extrusion Making Machine 0

Main Technical Data for Machines

Main extruder screw diameter 110mm
L/D 35:1
Main motor power 110kw
Co-extruder screw diameter 35mm
L/D 25:1
Co-extruder motor power 7.5kw
Installed power 220kw
Extrusion capacity 200kg/h
Machine dimension 30m*10m*5m
Board width 1050mm, 600mm, 900mm
Board thickness 6-30mm
Board density 1.2g/cm3



Board Applications:

Agriculture field: Greenhouse, Garden centers, Agricultural dinning halls, fish ponds etc.

Construction field: skylights and rooflights, public facilities, conservatories, residential, walkways and bridges, canopies and bus stops, walls etc.

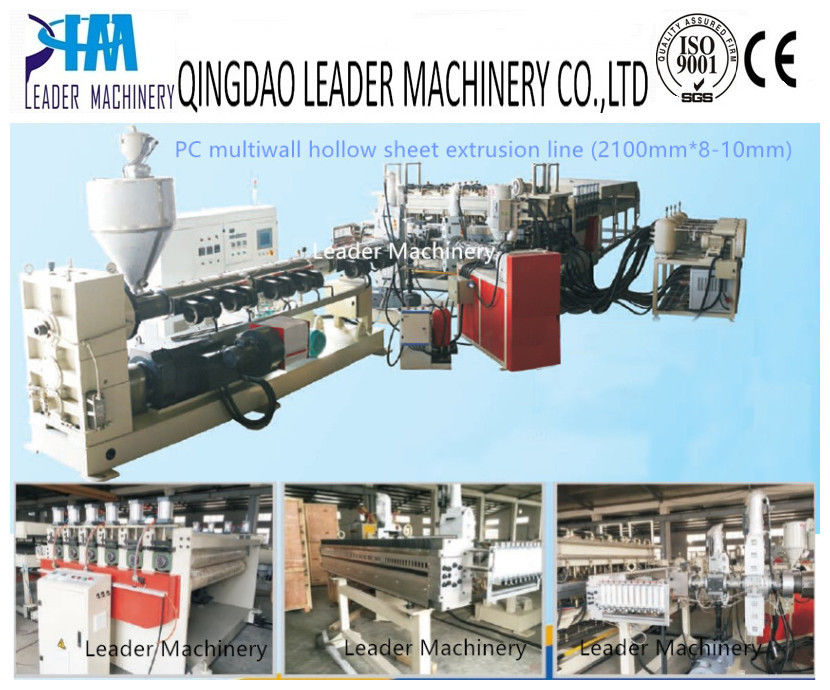

600mm PC Polycarabonte Hollow Board U Shaped Panel Extrusion Making Machine 1



Board Features:

1) Excellent load capacity

2) Free expansion

3) Easy and fast to install

4) 100% leaking-proof

5) Lower U value

6) Suitable for bending design

7) 2 sides UV protected

8) Solar control ability



COMPANY INFORMATION AND MAIN PRODUCTS:

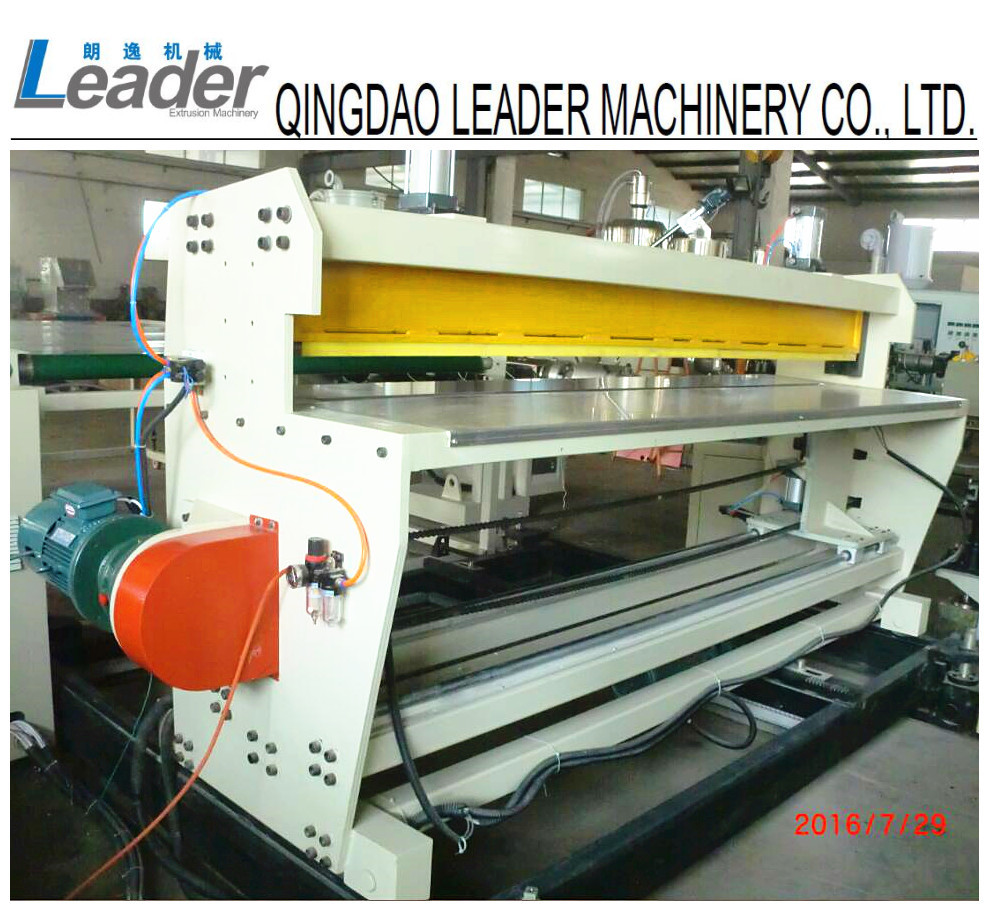

600mm PC Polycarabonte Hollow Board U Shaped Panel Extrusion Making Machine 2

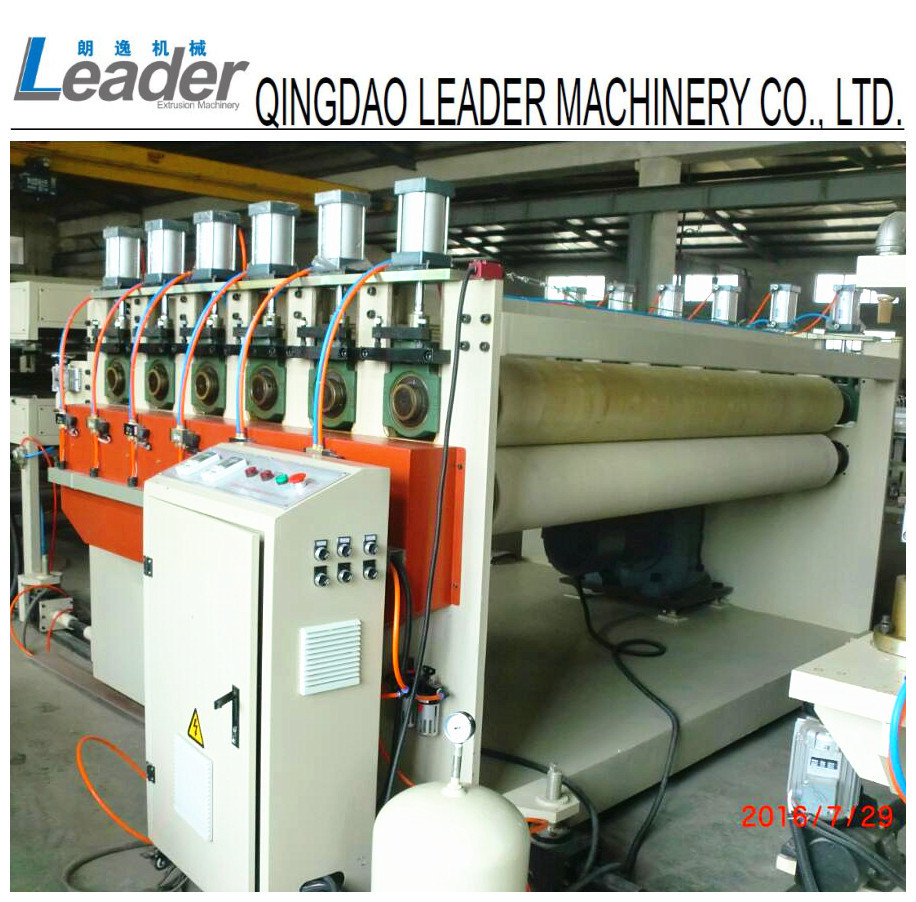

600mm PC Polycarabonte Hollow Board U Shaped Panel Extrusion Making Machine 3
