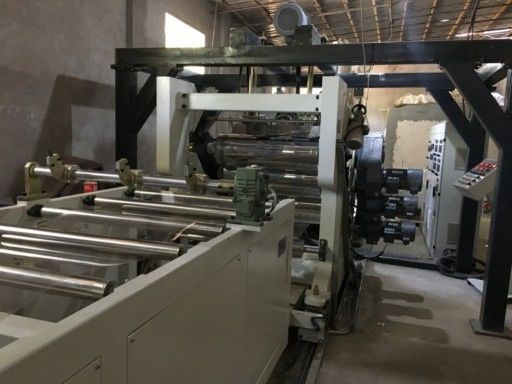

Twin Screw PET Sheet EXtrusion Line PET Sheet Production Line Thermoforming For Folding Box

Basic Information
Place of Origin: Qingdao, China
Brand Name: Leader
Certification: CE ISO SGS GOST
Model Number: SJ120/35 single screw extruder
Minimum Order Quantity: 1 set
Packaging Details: plywood pallet
Delivery Time: 95 workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 Sets / Year
Name: Twin Screw PET Sheet EXtrusion Line PET Sheet Production Line Thermoforming For Folding Box Material: PET
Extruder Type: Single Screw Extruder SJ120/35 Thickness: 0.15-1.2mm
Width: 600mm, 900mm , 1000mm Or Customised Max Capacity: 300kg/h
High Light:

pet extruder machine

,

pet sheet making machine

,

pet extrusion machine

Twin Screw PET Sheet EXtrusion Line PET Sheet Production Line Thermoforming For Folding Box



Introduction :



PET sheet line, newly-developed by us, firstly can be used for the production of APET, PETG, and CPET sheet, and secondly for ABA sheet (A refers to the pure resin with antis ticking agent or UV stabilizing agent; B refers to high-ratio PET recycling material) if with synchronous layer- separator (European Technology)& high -efficiency extruder.



This sheet is widely used for thermoforming packing industry.



Parameters:



Sheet width : 600-1500mm
Sheet thickness : 0.15-1.2mm
Capacity : 350 - 1000 kg /h



Model Multi Layer Single Layer High-efficient
Extruder Specification sj75&36/40-1000 SJ75/40-1000 SJ95&52/44-1500
Product Thickness 0.15-1.5mm 0.15-1.5mm 0.15-1.5mm
Main Motor Power 110kw/45kw 110kw 250kw/55kw
Max Extrusion Capacity 500kg/h 450kg/h 800-1000kg/h
