| Place of Origin: | Qingdao China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJ120/33 |
| Minimum Order Quantity: | 1 Set |
| Price: | negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 18Sets / Year |
| Name: | Packing Industry PP PS Sheet Extrusion Line Vacuum Thermoforming Sheet Extrusion Line | Extruder: | Single Screw EXtruder SJ120/33 |
|---|---|---|---|
| Product Width: | 700mm-2200mm | Product Thickness: | 0.2-2mm,1.5-10mm |
| Max. Capacity: | 550kg/h | Material: | PP PS PE ABS PLA |
| High Light: | pp extrusion machine,pp sheet making machine |
||

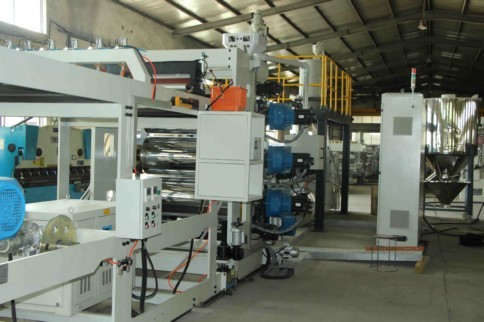

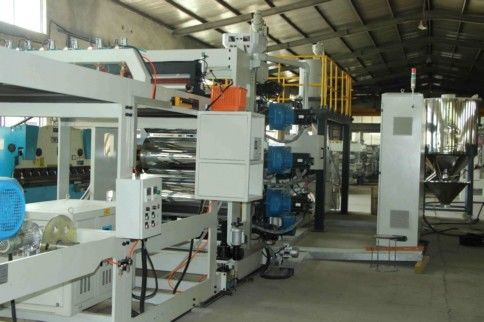

Packing Industry PP PS Sheet Extrusion Line Vacuum Thermoforming Sheet Extrusion Line
PE PP PS Thermoforming Sheet / PP Stationery Extrusion Line Low Energy Consumption
Main technical data:
1. Usual sheet width : 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual Sheet thickness : 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields
of packaging, stationery, chemicals, construction, household appliances and so on.
Production Flows:
| Vacuum feeding machine | 1 set |
| Hopper dryer | 1set |
| Single Screw Extruder | 1set |
| Hydraulic filter exchanging unit and melt pump | 1 set |
| T-type Die Head | 1 set |

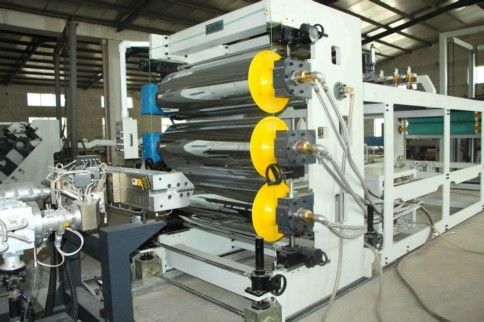

| Three-roller Calendar | 1 set |
| Cooling Frame & Edge Cutting Knives | 1 set |
| haul off machine and cutting machine | 1 set |
| Double position winder | 1 set |
Machine Usage Description:
Vacuum Thermoforming Polystyrene PS PP sheet making machine, Polystyrene PS PP sheet
extrusion machine,Polystyrene PS sheet production line produce PP PS single layer or multi-layers sheet
or plate. The PP PS sheet has wide application in the Vacuum themoforming field. The PP PS sheet can
be manufactured to plastic cups, tray, boxes
