| Place of Origin: | Qingdao China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS |
| Model Number: | LMSJSZ80/156 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90 Workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Name: | PVC Celuka Crusted Board Foam Board Extrusion Line 3 - 30mm Product Thickness | Material: | PVC Powder |
|---|---|---|---|
| Extruder: | Twin Screw Extruder SJSZ80/156 | Product Width: | 1200-2100mm |
| Product Thickness: | 3-30mm | Max. Capacity: | 600kg/h |
| High Light: | pvc foam board manufacturing machine,pvc foam board production line |
||

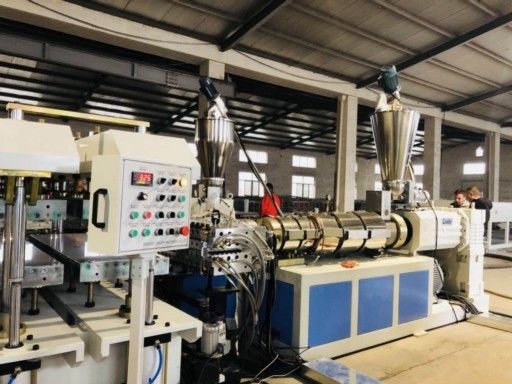

PVC Celuka Crusted Board Foam Board Extrusion Line 3 - 30mm Product Thickness
PVC Free Foam Board 4*8 3-30mm / plate Co-extrusion Line Width of 2050mm
PART 1: THIS PVC CRUST FOAMED PLATE EXTRUSION LINE CONSISTS OF:
1. SJSZ-80 conical twin screw extruder 1 set
2. SDX1220 calibration table 1 set
3. SQY1220 haul-off unit 1 set
4. SQB1220 two-edge saw cutting unit 1 set
5. SQG1220 cross saw cutting unit 1 set
6. SFL1220 stacker 1 set
7. Celuka foam sheet extrusion mould 1 set
Other optional machine parts:
8. High speed hot and cold mixer 1 set
9. Plastic crusher 1 set
10. Plastic pulverizer 1 set
11. Water chiller 1 set
12. Compresser 1 set
PART 2: ADVANTAGES OF PVC CRUST FOAMED PLATE
Sound separation, sound absorption, heat separation, temperature-keeping, etc. The material is incombustible and it is safe for use.
PART 3: APPLICATIONS OF THIS PRODUCT:
Transport industry, architecture decoration industry, advertisement industry, industrial application, construction mold plate etc.
| Machine Type | SY80/156-1400 | SY92/188-1700 |
| Product Width | 1220mm | 1500mm |
| Product Thickness | 2-30mm | 3-19mm |
| Extruder Specification | SJZ80/156 | SJZ92/188 |
| Max. Extrusion Capacity | 400kg/h | 550kg/h |
| Main Motor Power | 75kw | 110kw |
