Place of Origin: | Qingdao, China |
---|---|
Brand Name: | Leder |
Certification: | CE ISO SGS GOST |
Model Number: | SJ120/38 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | plywood pallet and transparent film package |
Delivery Time: | 105 Workdays |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 20 Sets / Year |
Name: | UV Coextruded Single Screw Polycarbonate Embossed Sheet Extrusion Line | Material: | PC/PMMA/GPPS |
---|---|---|---|
Extruder: | Single Screw Extruder SJ120/38 | Product Width: | 1220mm-2440mm |
Product Thickness: | 1-12mm | Max. Capacity: | 450kg/h |
High Light: | polycarbonate sheet extruders,polycarbonate sheet making machine |

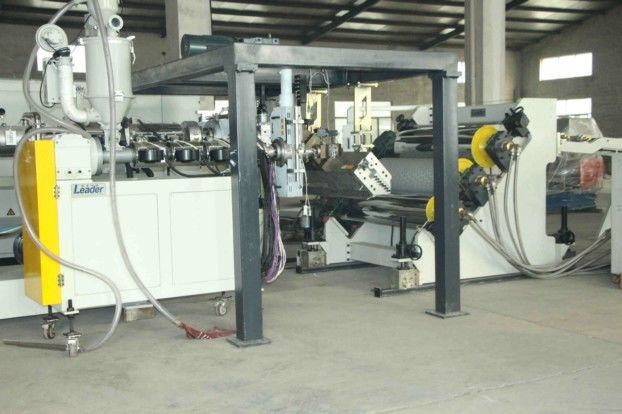

UV Coextruded Single Screw Polycarbonate Embossed Sheet Extrusion Line
Introduction:
PMMA PS PC light guide plate have two kinds, light panels and LCD panels.
Light panel is used for ultra light box, flat panel display lamp of led, poster stand and advertising decoration etc.
LCD panel can be used for the display of computer and television.
Main technical Data:
main extruder model | 120/35 | 130/35 |
main driving motor power | 185kw | 250kw |
Co-extruder model | 45/33 | 45/33 |
Co-extruder driving motor | 22kw | 22kw |
Sheet width | 1220mm | 2100mm |
Sheet thickness | 0.8-8mm | 1.5-16mm |
Max output | >=300kg/h | >=450kg/h |
