Name: | Adjustable Thermoplastic Polyurethane Sheet Equipment With Automatic Filter Exchanging Unit | Material: | TPU |
---|---|---|---|
Extruder: | Single Screw Extruder | Product Width: | 1500mm |
Product Thickness: | 0.5-6mm | Automatic Grade: | Automatic |
Application: | Sheet | Warranty: | 12 Months |
High Light: | single screw extrusion machine,film and sheet extrusion |
TPU Sheet Extrusion Line Width of 1500mm Thickness of 0.5-6.0mm
Adjustable Thermoplastic Polyurethane Sheet Equipment With Automatic Filter Exchanging Unit
Equipment Discreption

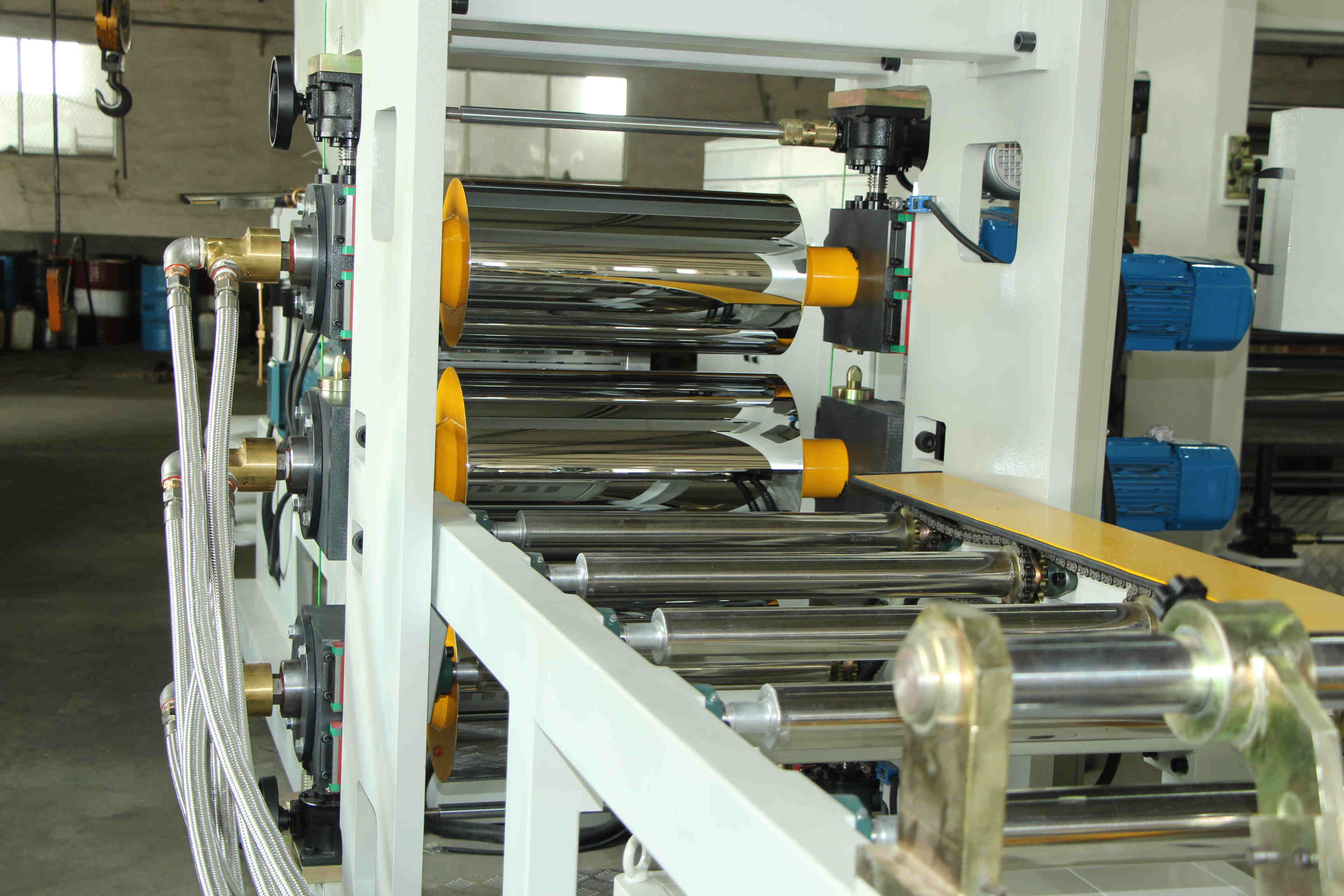

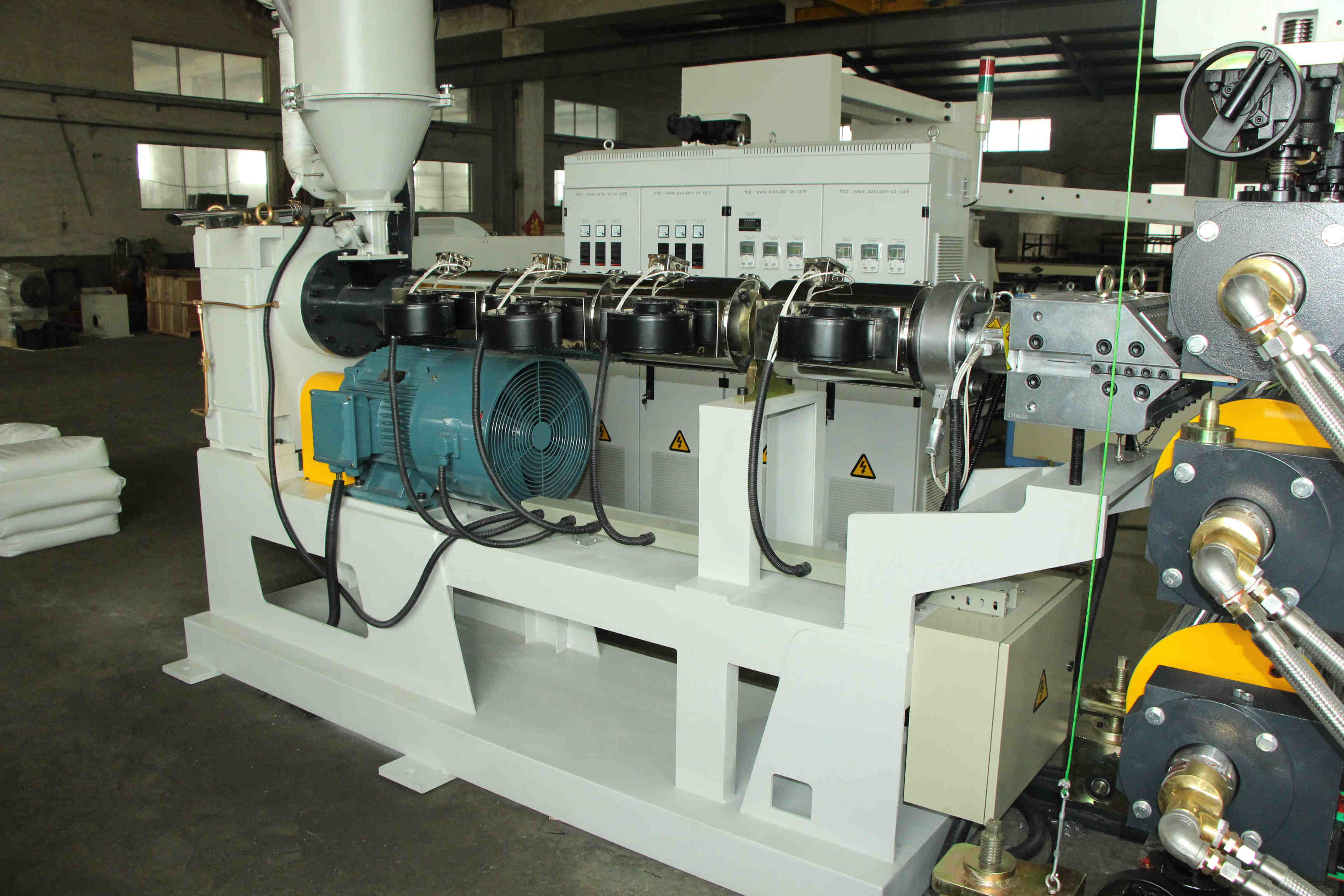

1)TPU sheet extrusion line: Material dehumidifying, loading, dryer, extruder, mesh-changing unit,
melt metering pump, sheet mould, calender, roller-temperature unit, cooling unit, edge-trimming, haul-off, winder and so on.
2)According to different size of sheet, the mould can be adjustable automatically, automatical thickness Gauge.
Model | 150/120/90-180 | 150/60-1200 | 130/60-1000 | 1200-1000 | 100-800 |
Product width | 1500mm | 1000mm | 900mm | 800mm | 600mm |
Product thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm | 0.2-2mm | 0.1-0.8mm |
Design capacity | 800-1000kg/hr | 800kg/hr | 550-600kg/hr | 350-400kg/hr | 200-250kg/hr |
Design line speed | 40M/min | 40M/min | 30M/min | 25M/min | 20M/min |
Calender diameter | Φ700mm | Φ700mm | Φ500mm | Φ500mm | Φ400m |
Applicaiton of TPU sheet extrusion line
TPU product is mainly used in field of Aviation, Military, Automoile, Battery, Solar energy, trains and so on.
