| Place of Origin: | Qingdao,China |
|---|---|
| Brand Name: | Leader |
| Certification: | CE ISO SGS GOST |
| Model Number: | SJZ65/132 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | plywood pallet |
| Delivery Time: | 90-105 workdays |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 Sets / Year |
| Material: | PVC | Name: | Width Of 800mm PVC Plastic Rigid Sheet Extrusion Line Machine Making Line |
|---|---|---|---|
| Extruder: | Twin Screw Extruer | Product Width: | 800mm |
| Product Thickness: | 0.3-3mm | Max. Capacity: | 350kg/h |
| High Light: | pvc sheet production line,pvc sheet machine |
||

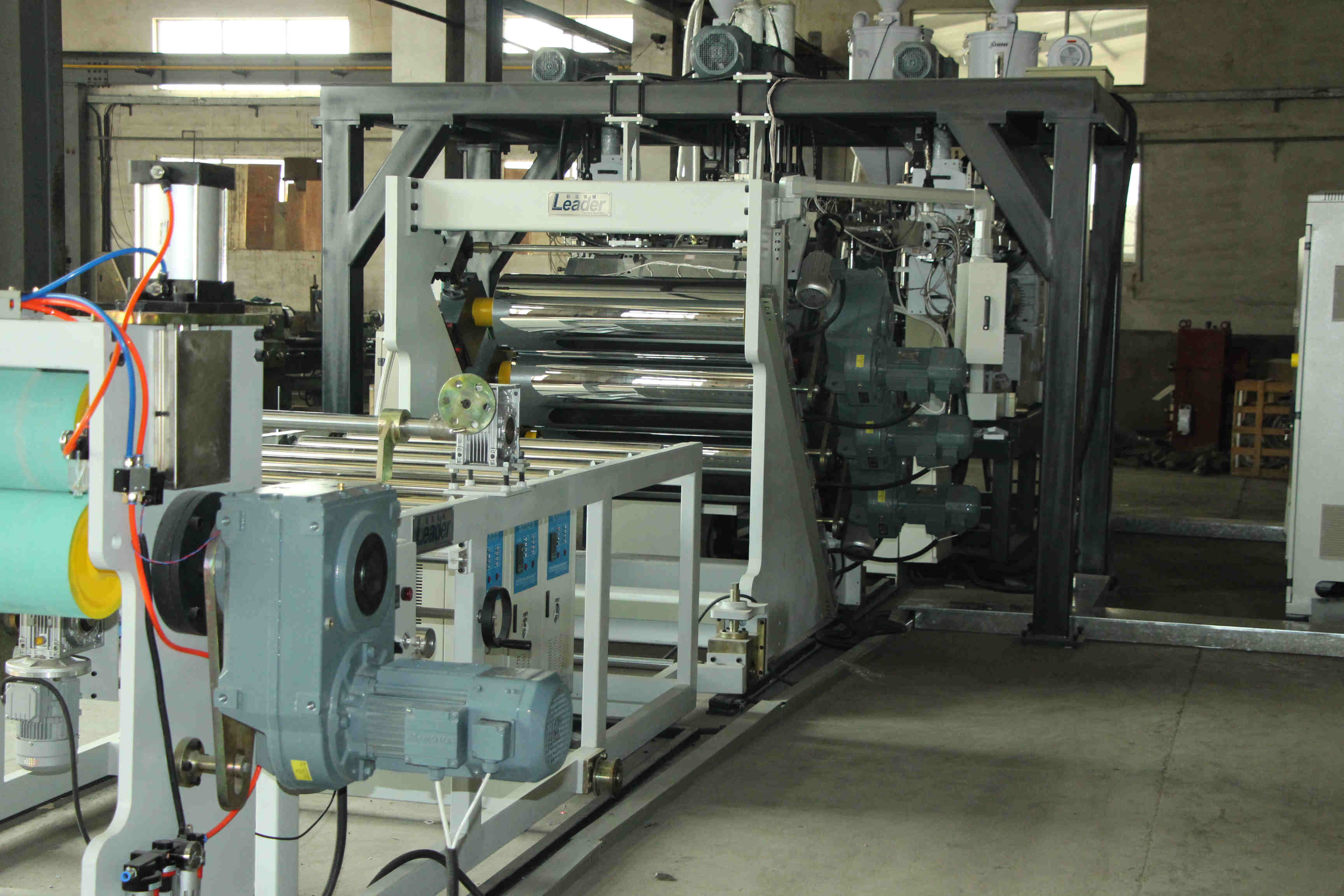

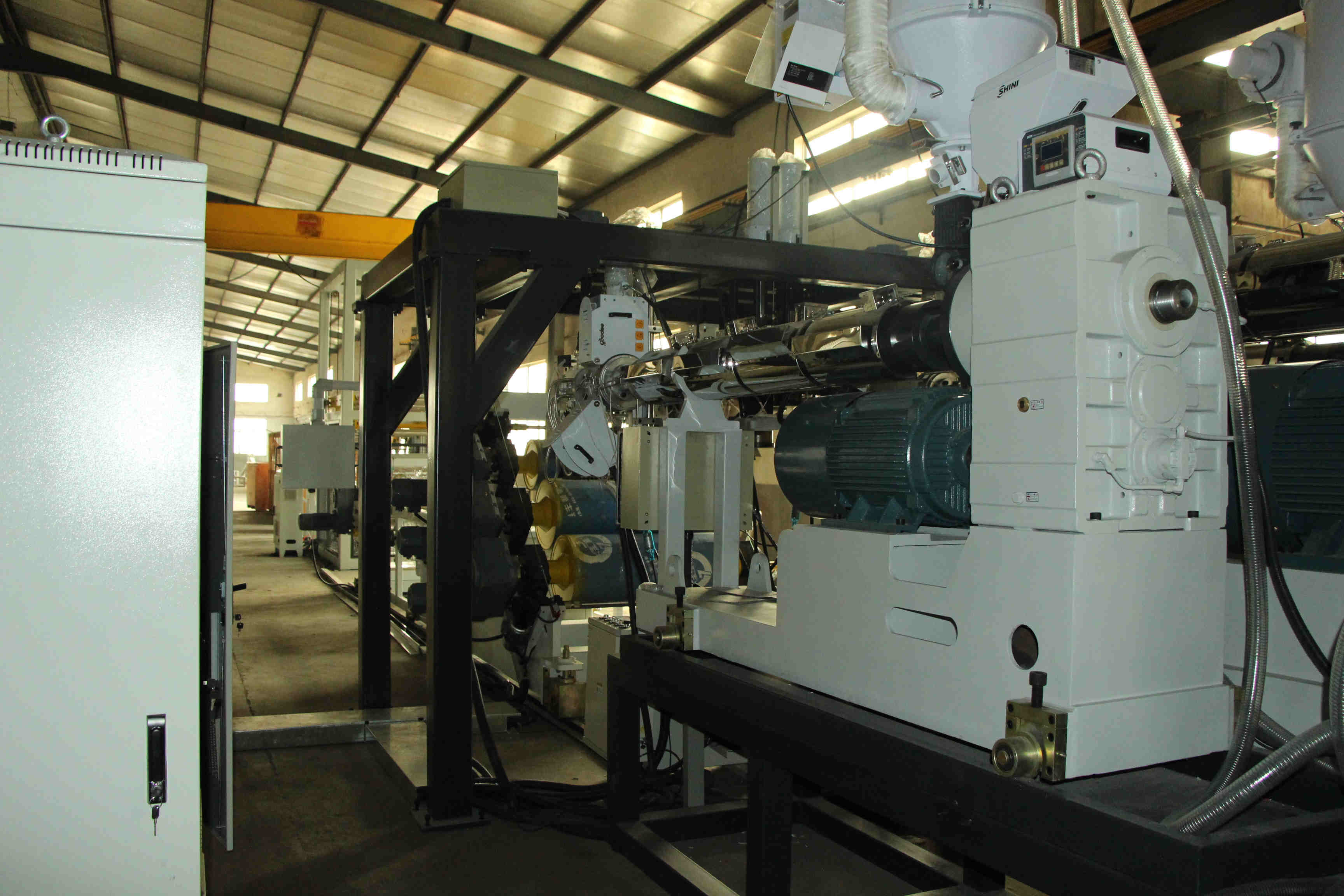

Width of 800mm PVC Plastic Rigid Sheet Extrusion Line Machine Making Line
Technical data:
| Model | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Sheet thickness | 0.2-8mm | 0.2-25mm | 0.3-36mm |
| Sheet width | 800mm | 1220mm | 1600mm |
| Motor power | 37KW | 75KW | 110KW |
| Output capacity | 200kg/h | 400kg/h | 800kg/h |
Product Description:
This line can produce soft PVC sheet, rigid PVC sheet, PVC edge band ,
PVC imitation marble board and so on.
PVC sheet easy to form,high tension,accurate products color controling,fireproof.
PVC edge band is widely used in furniture edge banding and skinning.
PVC imitation marble board instead of marble.Products with good aging
resistance,anti-ultraviolet ray,environmental and so many features.
